Monitor Ubuntu Servers in Home Assistant Using MQTT

If you’re managing Linux or Ubuntu servers at home or in a lab, a simple, reliable way to view system health inside Home Assistant is a game changer. This post introduces my lightweight MQTT agent for Ubuntu and Debian. It connects your servers to Home Assistant through the Mosquitto broker, and the full script is here to read and download.

What the MQTT Agent Does

The agent is a single bash script that installs a set of small systemd services on your Ubuntu (or any Debian-based) machine. They publish system metrics to your Home Assistant MQTT broker using MQTT Discovery, so Home Assistant automatically creates the server as a device with sensors you can put on dashboards or use in automations. There’s no YAML to write on the Home Assistant side.

It can also go the other way: each server gets a Reboot Host button, and a Config Update entity that tells you when a newer version of the agent is available and installs it with one click.

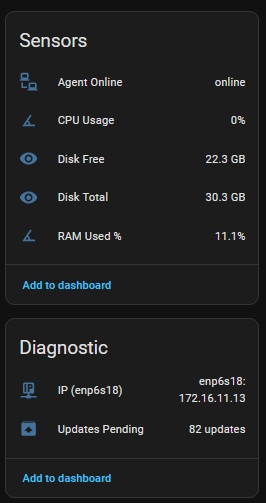

Discovered Sensors

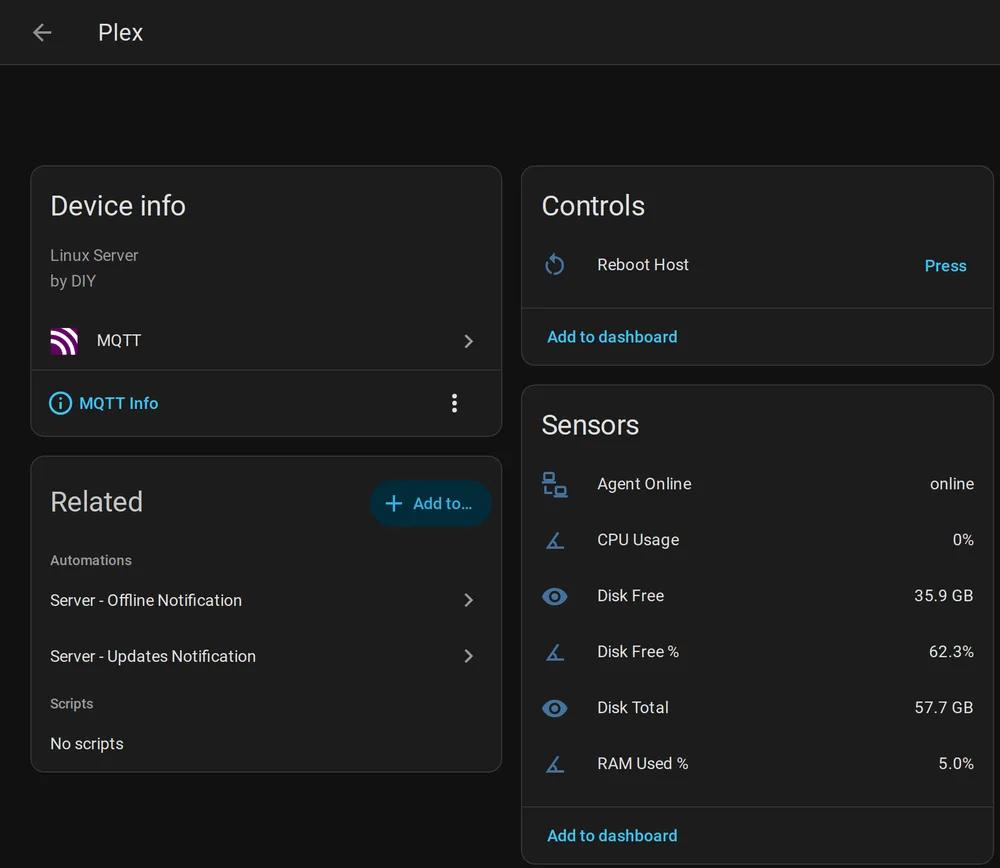

Once installed, each server turns up in Home Assistant as its own device, with no YAML to write. Here’s my Plex server:


It creates these entities for each server:

Every sensor is tied to the agent’s heartbeat. If a server goes down or the agent stops, its sensors switch to unavailable within two minutes instead of quietly showing stale values, which makes for easy “server offline” automations. I’ve written up mine in one alert for the whole homelab, which lists every offline server and pending update in a single notification.

The agent is lightweight and publishes over plain MQTT, on port 1883 by default.

Set Up MQTT in Home Assistant (Mosquitto)

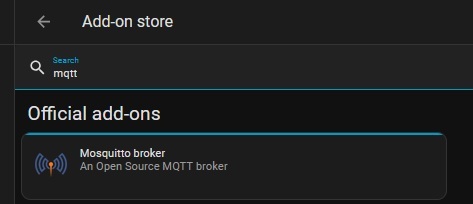

1. Install the Mosquitto broker add-on. Go to Settings > Add-ons > Add-on store, search for “Mosquitto broker” and click Install.

2. Create an MQTT user. Go to Settings > People > Users > Add User. For example:

   • Display name: MQTT
   • Username: MQTT
   • Password: use something secure

   After creating the user, restart the Mosquitto add-on.

3. Check the MQTT integration. Go to Settings > Devices & Services. Home Assistant usually discovers the Mosquitto broker automatically; click Configure on the MQTT integration if it’s offered.

That’s it. Home Assistant is now ready to receive metrics from your Ubuntu servers.

Download the MQTT Agent Script

Here’s the exact script I run, currently version 30. You can download it directly or read it below first. It’s the same file the agent’s built-in updater checks, so this link always has the latest version.

Download: ha-mqtt-agent.sh

Or straight onto your server:

curl -fsSLO https://jackwent.co.uk/downloads/ha-agent/ha-mqtt-agent.sh

#!/usr/bin/env bash
# ha-mqtt-agent.sh
# Usage:
#   sudo bash ha-mqtt-agent.sh -install    # install/upgrade
#   sudo bash ha-mqtt-agent.sh -uninstall  # remove everything
set -euo pipefail

# Bump this on every functional change - it's printed at the end of
# -install and is the only place the version is tracked now that it's
# no longer in the filename.
SCRIPT_VERSION="30"

ACTION="${1:- -install}"

# ---- Config ----
# Set these via environment variables, or drop a .env file next to this
# script (gitignored) with MQTT_HOST/MQTT_PORT/MQTT_USER/MQTT_PASS set.
# Only required for -install; -uninstall doesn't touch the broker.
SCRIPT_DIR="$(cd "$(dirname "${BASH_SOURCE[0]}")" && pwd)"
# shellcheck disable=SC1091 # .env is intentionally gitignored/optional, not present in the repo
[ -f "$SCRIPT_DIR/.env" ] && source "$SCRIPT_DIR/.env"

# Fall back to this host's already-installed config, if any, so -upgrade
# doesn't need credentials re-supplied every time on a host that's already
# set up - only kicks in when nothing above (env var / .env) already set
# MQTT_HOST, so an explicit value always wins over what's stored.
if [ -z "${MQTT_HOST:-}" ] && [ -f /etc/ha-mqtt-agent/env ]; then
  # shellcheck disable=SC1091 # generated at install time, not present in the repo
  source /etc/ha-mqtt-agent/env
fi

MQTT_PORT="${MQTT_PORT:-1883}"
if [[ "$ACTION" != *uninstall* ]]; then
  MQTT_HOST="${MQTT_HOST:?set MQTT_HOST (env var or .env file)}"
  MQTT_USER="${MQTT_USER:?set MQTT_USER (env var or .env file)}"
  MQTT_PASS="${MQTT_PASS:?set MQTT_PASS (env var or .env file)}"
fi

# Heartbeat & expiry (seconds)
HEARTBEAT_INTERVAL=30      # metrics timer
SENSOR_EXPIRE=120          # sensors stale timeout (cpu/ram/disk/updates/ip)

# Where update checks download this script from, to compare SCRIPT_VERSION
# against what's installed. Override via env var/.env if ever needed.
UPDATE_URL="${UPDATE_URL:-https://jackwent.co.uk/downloads/ha-agent/ha-mqtt-agent.sh}"

LOG_DIR="/var/log/mqtt-agent"
LOG_FILE="$LOG_DIR/agent.log"
MAX_LOG_BYTES=$((1024*1024))  # 1 MiB

DEVICE_ID="$(hostname -s || hostname)"
# Capitalize the device name's first letter for nicer sensor labels
DEVICE_NAME="$(printf '%s' "$DEVICE_ID" | sed 's/^./\u&/')"

ensure_logs() {
  mkdir -p "$LOG_DIR"
  touch "$LOG_FILE"
  # truncate if too big
  if [ -f "$LOG_FILE" ]; then
    size=$(stat -c%s "$LOG_FILE" 2>/dev/null || wc -c <"$LOG_FILE")
    if [ "${size:-0}" -gt "$MAX_LOG_BYTES" ]; then
      : > "$LOG_FILE"
    fi
  fi
}

write_common_lib() {
  install -d -m 0755 /usr/local/lib/ha-mqtt-agent
  cat > /usr/local/lib/ha-mqtt-agent/common.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail

LOG_DIR="/var/log/mqtt-agent"
LOG_FILE="$LOG_DIR/agent.log"
MAX_LOG_BYTES=${LOG_MAX_BYTES:-1048576}

mkdir -p "$LOG_DIR"
touch "$LOG_FILE"
# truncate if too big
if [ -f "$LOG_FILE" ]; then
  size=$(stat -c%s "$LOG_FILE" 2>/dev/null || wc -c <"$LOG_FILE")
  if [ "${size:-0}" -gt "$MAX_LOG_BYTES" ]; then
    : > "$LOG_FILE"
  fi
fi

# Redirect all stdout/stderr to the log
exec >>"$LOG_FILE" 2>&1

log() {
  # usage: log "message"
  echo "$(date -Is) [$0] $*"
}
EOF
  chmod +x /usr/local/lib/ha-mqtt-agent/common.sh
}

install_all() {
  export DEBIAN_FRONTEND=noninteractive
  apt-get update
  apt-get install -y --no-install-recommends jq mosquitto-clients apt-show-versions coreutils gawk logrotate iproute2 util-linux psmisc curl

  # Migration: this service was renamed ha-mqtt-reboot-listener ->
  # ha-mqtt-command-listener when the agent-update feature was added (it now
  # handles more than just reboots). Clean up the old name on any host
  # upgrading from that version so it doesn't linger alongside the new one.
  if [ -f /etc/systemd/system/ha-mqtt-reboot-listener.service ]; then
    systemctl disable --now ha-mqtt-reboot-listener.service 2>/dev/null || true
    rm -f /etc/systemd/system/ha-mqtt-reboot-listener.service
    rm -f /usr/local/bin/ha-mqtt-reboot-listener.sh
  fi

  ensure_logs
  install -d -m 0755 /usr/local/bin
  install -d -m 0755 /usr/local/lib/ha-mqtt-agent
  install -d -m 0700 /etc/ha-mqtt-agent
  # Belt-and-braces for -upgrade on a device installed by an older version of
  # this script (which created this directory as 0755): install -d doesn't
  # reliably re-chmod a directory that already exists, so force it here too.
  chmod 0700 /etc/ha-mqtt-agent
  install -d -m 0755 /run/ha-mqtt-agent

  # env file - contains MQTT_PASS in plaintext, so lock it down to root-only
  # before writing any content (systemd's EnvironmentFile= is read by the
  # manager process, always root, so this doesn't need to be readable by
  # whatever User= a service later runs as).
  install -m 0600 /dev/null /etc/ha-mqtt-agent/env
  cat > /etc/ha-mqtt-agent/env <<EOF
MQTT_HOST="$MQTT_HOST"
MQTT_PORT="$MQTT_PORT"
MQTT_USER="$MQTT_USER"
MQTT_PASS="$MQTT_PASS"
HEARTBEAT_INTERVAL="$HEARTBEAT_INTERVAL"
SENSOR_EXPIRE="$SENSOR_EXPIRE"
AGENT_VERSION="$SCRIPT_VERSION"
AGENT_UPDATE_URL="$UPDATE_URL"
# device id/name default to host at runtime
EOF

  # Persist a copy of this installer itself, so the update-check/update-apply
  # scripts have a fixed, known path to compare against and re-run - the
  # script as originally invoked might have been a one-off download that
  # isn't sitting anywhere stable on disk. When the self-update flow re-runs
  # -upgrade FROM that persisted path, source and dest are the same file -
  # `install` refuses that (fatal under set -e), so skip the copy then.
  if [ "${BASH_SOURCE[0]}" -ef /usr/local/lib/ha-mqtt-agent/installer.sh ]; then
    chmod 0755 /usr/local/lib/ha-mqtt-agent/installer.sh
  else
    install -m 0755 "${BASH_SOURCE[0]}" /usr/local/lib/ha-mqtt-agent/installer.sh
  fi

  # common lib (logging)
  write_common_lib

  # metrics (publishes heartbeat + metrics + cached updates + per-iface IPs every run)
  cat > /usr/local/bin/ha-mqtt-metrics.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail
source /usr/local/lib/ha-mqtt-agent/common.sh
log "starting metrics script"
source /etc/ha-mqtt-agent/env

HOSTNAME_SHORT="$(hostname -s || hostname)"
DEVICE_ID="$HOSTNAME_SHORT"
DEVICE_NAME="$(printf '%s' "$HOSTNAME_SHORT" | sed 's/^./\u&/')"
BASE="servers/$DEVICE_ID"
HEARTBEAT_TOPIC="$BASE/heartbeat"
STATE_TOPIC="$BASE/state"
UPDATES_TOPIC="$BASE/updates"
RUNDIR="/run/ha-mqtt-agent"; mkdir -p "$RUNDIR"
CACHE="$RUNDIR/updates.cache"

# CPU usage over ~0.5s
read -r cpu user nice system idle iowait irq softirq steal guest guest_nice < /proc/stat
total1=$((user+nice+system+idle+iowait+irq+softirq+steal))
idle1=$idle
sleep 0.5
read -r cpu user nice system idle iowait irq softirq steal guest guest_nice < /proc/stat
total2=$((user+nice+system+idle+iowait+irq+softirq+steal))
idle2=$idle
totald=$((total2-total1))
idled=$((idle2-idle1))
cpu_used=$(( (1000*(totald-idled)/totald + 5)/10 ))

# RAM used %
mem_used_pct="$(free | awk '/Mem:/{printf("%.1f", $3*100/$2)}')"

# Swap used % (0 if no swap configured, rather than dividing by zero)
swap_used_pct="$(free | awk '/Swap:/{ if ($2>0) printf("%.1f", $3*100/$2); else print "0.0" }')"

# Load average (1/5/15 min)
read -r load1 load5 load15 _ < /proc/loadavg

# Reboot required (Debian/Ubuntu apt flag file)
if [ -f /var/run/reboot-required ]; then reboot_required=true; else reboot_required=false; fi

# Failed systemd units
failed_units="$(systemctl --failed --no-legend --plain 2>/dev/null | wc -l | tr -d '[:space:]')"
[ -z "${failed_units:-}" ] && failed_units=0

# Default gateway (route IP)
gateway_ip="$(ip route show default 2>/dev/null | awk '{print $3; exit}')"

# First two configured DNS servers. On systemd-resolved hosts (default on
# Ubuntu), /etc/resolv.conf just points at the local 127.0.0.53 stub - the
# real upstream servers live in /run/systemd/resolve/resolv.conf instead.
if [ -f /run/systemd/resolve/resolv.conf ]; then
  RESOLV_CONF=/run/systemd/resolve/resolv.conf
else
  RESOLV_CONF=/etc/resolv.conf
fi
mapfile -t dns_servers < <(awk '/^nameserver/{print $2}' "$RESOLV_CONF" 2>/dev/null)
dns1="${dns_servers[0]:-0.0.0.0}"
dns2="${dns_servers[1]:-0.0.0.0}"

# OS version, e.g. "Ubuntu 24.04.1 LTS" - PRETTY_NAME from os-release, falling back
# to kernel name + release on anything without one.
os_version=""
if [ -r /etc/os-release ]; then
  os_version="$(. /etc/os-release 2>/dev/null && printf '%s' "${PRETTY_NAME:-}")"
fi
[ -z "$os_version" ] && os_version="$(uname -sr)"

# Disk for /
read -r total used free <<<"$(df -B1 / | awk 'NR==2{print $2, $3, $4}')"
disk_free_gb=$(awk -v f="$free" 'BEGIN {printf "%.1f", f/1024/1024/1024}')
disk_total_gb=$(awk -v t="$total" 'BEGIN {printf "%.1f", t/1024/1024/1024}')
disk_free_pct=$(awk -v f="$free" -v t="$total" 'BEGIN {printf "%.1f", (t>0) ? f*100/t : 0}')

payload="$(jq -nc --arg host "$DEVICE_NAME" \
  --argjson cpu "$cpu_used" \
  --argjson ram "$mem_used_pct" \
  --argjson swap "$swap_used_pct" \
  --argjson load1 "$load1" \
  --argjson load5 "$load5" \
  --argjson load15 "$load15" \
  --arg reboot_required "$reboot_required" \
  --argjson failed_units "$failed_units" \
  --argjson disk_free_gb "$disk_free_gb" \
  --argjson disk_total_gb "$disk_total_gb" \
  --argjson disk_free_pct "$disk_free_pct" \
  --arg agent_version "${AGENT_VERSION:-unknown}" \
  --arg gateway "$gateway_ip" \
  --arg dns1 "$dns1" \
  --arg dns2 "$dns2" \
  --arg os_version "$os_version" \
  '{host:$host, cpu:$cpu, ram:$ram, swap:$swap, load1:$load1, load5:$load5, load15:$load15, reboot_required:$reboot_required, failed_units:$failed_units, disk_free_gb:$disk_free_gb, disk_total_gb:$disk_total_gb, disk_free_pct:$disk_free_pct, agent_version:$agent_version, gateway:$gateway, dns1:$dns1, dns2:$dns2, os_version:$os_version}')"

mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$STATE_TOPIC" -m "$payload" || log "ERROR publishing metrics"

# Per-interface IPv4s (first address per interface), only 'up' and global
# Publish to servers/<host>/ip/<iface>
while IFS= read -r line; do
  iface_raw="$(echo "$line" | awk '{print $2}')"
  iface="${iface_raw%%@*}"  # strip @ifindex
  # Skip Docker-managed interfaces (docker0, docker_gwbridge, and the
  # per-network br-<hash> bridges Compose creates) - only physical NICs wanted.
  case "$iface" in
    docker*|br-*) continue ;;
  esac
  ipaddr="$(echo "$line" | awk '{print $4}' | cut -d'/' -f1)"
  # sanitize iface name for topic (and trim trailing _)
  safe_iface="$(echo "$iface" | tr -c 'A-Za-z0-9_' '_' | sed 's/_\+$//')"
  [ -n "$ipaddr" ] && mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
    -t "$BASE/ip/$safe_iface" -m "$iface: $ipaddr" || true
done < <(ip -o -4 addr show scope global up | awk '!seen[$2]++')

# Re-publish cached updates (so sensor expires with heartbeat if agent dies)
if [ -f "$CACHE" ]; then
  cached="$(tr -d '[:space:]' < "$CACHE")"
  if [[ "$cached" =~ ^[0-9]+$ ]]; then
    mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$UPDATES_TOPIC" -m "$cached" || log "ERROR publishing cached updates"
    log "published cached updates: $cached"
  fi
fi

# Heartbeat (non-retained)
mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$HEARTBEAT_TOPIC" -m "online" || true
EOF
  chmod +x /usr/local/bin/ha-mqtt-metrics.sh

  # updates (hourly real count; single-instance lock; waits for apt locks; writes cache; non-retained publish)
  cat > /usr/local/bin/ha-mqtt-updates.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail
source /usr/local/lib/ha-mqtt-agent/common.sh
log "starting updates script"
source /etc/ha-mqtt-agent/env

HOSTNAME_SHORT="$(hostname -s || hostname)"
DEVICE_ID="$HOSTNAME_SHORT"
BASE="servers/$DEVICE_ID"
UPDATES_TOPIC="$BASE/updates"
RUNDIR="/run/ha-mqtt-agent"; mkdir -p "$RUNDIR"
CACHE="$RUNDIR/updates.cache"
LOCK="$RUNDIR/updates.lock"

# ensure only one updates run at a time
exec 200>"$LOCK"
if ! flock -n 200; then
  log "another updates run is active, exiting"
  exit 0
fi

wait_for_apt_locks() {
  local tries=0
  local max_tries=40   # ~10 minutes at 15s
  local sleep_s=15
  while [ $tries -lt $max_tries ]; do
    local blocked=0
    for f in /var/lib/apt/lists/lock /var/lib/dpkg/lock-frontend /var/lib/dpkg/lock; do
      if fuser "$f" >/dev/null 2>&1; then
        blocked=1
        log "apt lock on $f; waiting ${sleep_s}s (try $((tries+1))/$max_tries)"
      fi
    done
    [ $blocked -eq 0 ] && return 0
    tries=$((tries+1))
    sleep "$sleep_s"
  done
  log "apt appears locked for too long; proceeding anyway"
  return 0
}

export DEBIAN_FRONTEND=noninteractive

log "waiting for apt locks (if any)..."
wait_for_apt_locks

log "running apt-get update..."
if apt-get update -qq -o Acquire::Retries=3; then
  log "apt-get update complete"
else
  log "apt-get update failed (continuing to count upgrades)"
fi

count="$(apt-show-versions -u -b | sed '/^No .* upgrades/d' | wc -l | tr -d '[:space:]' || echo 0)"
[ -z "${count:-}" ] && count=0
echo "$count" > "$CACHE"
log "updates pending: $count (cached at $CACHE)"

mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$UPDATES_TOPIC" -m "$count" || log "ERROR publishing updates"
EOF
  chmod +x /usr/local/bin/ha-mqtt-updates.sh

  # agent self-update (downloads UPDATE_URL, sanity-checks it, replaces the
  # persisted installer copy, and re-runs -upgrade - called by the command
  # listener below on receipt of the update command)
  cat > /usr/local/bin/ha-mqtt-agent-update.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail
source /usr/local/lib/ha-mqtt-agent/common.sh
log "starting agent self-update"
source /etc/ha-mqtt-agent/env

HOSTNAME_SHORT="$(hostname -s || hostname)"
DEVICE_ID="$HOSTNAME_SHORT"
UPDATE_STATE_TOPIC="servers/$DEVICE_ID/agent_update"

# Publishes install progress for HA's update entity progress bar.
# $1 = update_percentage (0-100, or the literal string "null" to clear it)
# $2 = in_progress (true/false)
# $3 = latest_version to report
publish_progress() {
  mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
    -t "$UPDATE_STATE_TOPIC" -r \
    -m "$(jq -nc --arg inst "${AGENT_VERSION:-unknown}" --arg lat "$3" --argjson pct "$1" --argjson prog "$2" \
      '{installed_version:$inst, latest_version:$lat, in_progress:$prog, update_percentage:$pct}')" || true
}

INSTALLER_PATH="/usr/local/lib/ha-mqtt-agent/installer.sh"
TMP_SCRIPT="$(mktemp)"
trap 'rm -f "$TMP_SCRIPT"' EXIT

if ! curl -fsSL --max-time 30 -o "$TMP_SCRIPT" "$AGENT_UPDATE_URL"; then
  log "ERROR: failed to download updated installer from $AGENT_UPDATE_URL"
  publish_progress null false "${AGENT_VERSION:-unknown}"
  exit 1
fi

if ! bash -n "$TMP_SCRIPT"; then
  log "ERROR: downloaded installer failed syntax check, aborting update"
  publish_progress null false "${AGENT_VERSION:-unknown}"
  exit 1
fi

remote_version="$(grep -m1 '^SCRIPT_VERSION=' "$TMP_SCRIPT" | sed -E 's/^SCRIPT_VERSION="?([^"[:space:]]*)"?.*/\1/')"
if [ -z "$remote_version" ]; then
  log "ERROR: downloaded installer has no SCRIPT_VERSION line, aborting update"
  publish_progress null false "${AGENT_VERSION:-unknown}"
  exit 1
fi
publish_progress 35 true "$remote_version"

install -m 0755 "$TMP_SCRIPT" "$INSTALLER_PATH"
log "downloaded and validated new installer, running -upgrade"
publish_progress 60 true "$remote_version"
# install_all() publishes the Config Update "up to date" state itself at
# the end (before restarting the command listener - see its comment), so
# the entity refreshes regardless of whether -upgrade got here via this
# button or was run manually - no separate refresh step needed here.
MQTT_HOST="$MQTT_HOST" MQTT_PORT="$MQTT_PORT" MQTT_USER="$MQTT_USER" MQTT_PASS="$MQTT_PASS" \
  bash "$INSTALLER_PATH" -upgrade
EOF
  chmod +x /usr/local/bin/ha-mqtt-agent-update.sh

  # command listener (long-running subscriber, not a timer - HA button/update
  # presses are a single non-retained MQTT message, so something has to be
  # actively subscribed at the moment one's sent or it's missed entirely).
  # Handles both the reboot button and the agent-update button.
  cat > /usr/local/bin/ha-mqtt-command-listener.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail
source /usr/local/lib/ha-mqtt-agent/common.sh
log "starting command listener"
source /etc/ha-mqtt-agent/env

HOSTNAME_SHORT="$(hostname -s || hostname)"
DEVICE_ID="$HOSTNAME_SHORT"
REBOOT_TOPIC="servers/$DEVICE_ID/reboot/set"
UPDATE_TOPIC="servers/$DEVICE_ID/agent_update/set"

log "listening for commands on $REBOOT_TOPIC and $UPDATE_TOPIC"

mosquitto_sub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -v -t "$REBOOT_TOPIC" -t "$UPDATE_TOPIC" | while IFS=' ' read -r topic _; do
  case "$topic" in
    "$REBOOT_TOPIC")
      log "reboot command received via MQTT - publishing final state, then rebooting"
      # Offline heartbeat so HA shows the device unavailable immediately
      # instead of waiting up to SENSOR_EXPIRE for it to time out on its own.
      mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
        -t "servers/$DEVICE_ID/heartbeat" -m "offline" || true
      # Config Update: whatever's currently installed is "up to date" at the
      # moment of a deliberate reboot, regardless of what UPDATE_URL has.
      mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
        -t "servers/$DEVICE_ID/agent_update" -r \
        -m "$(jq -nc --arg v "${AGENT_VERSION:-unknown}" '{installed_version:$v, latest_version:$v, in_progress:false, update_percentage:null}')" || true
      systemctl reboot
      ;;
    "$UPDATE_TOPIC")
      log "update command received via MQTT"
      # Kick the progress bar off immediately - ha-mqtt-agent-update.sh takes
      # it from here once it knows the real latest_version.
      mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
        -t "servers/$DEVICE_ID/agent_update" -r \
        -m "$(jq -nc --arg v "${AGENT_VERSION:-unknown}" '{installed_version:$v, latest_version:$v, in_progress:true, update_percentage:5}')" || true
      if ! /usr/local/bin/ha-mqtt-agent-update.sh; then
        log "ERROR: agent update failed"
        # Safety net in case ha-mqtt-agent-update.sh crashed before it could
        # reset its own progress state (e.g. killed mid-run) - don't leave
        # the update entity stuck showing "installing" forever.
        mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
          -t "servers/$DEVICE_ID/agent_update" -r \
          -m "$(jq -nc --arg v "${AGENT_VERSION:-unknown}" '{installed_version:$v, latest_version:$v, in_progress:false, update_percentage:null}')" || true
      fi
      ;;
  esac
done
EOF
  chmod +x /usr/local/bin/ha-mqtt-command-listener.sh

  # update check (downloads UPDATE_URL, compares its SCRIPT_VERSION against
  # what's installed, publishes the result - read-only, never applies
  # anything itself; that's ha-mqtt-agent-update.sh's job)
  cat > /usr/local/bin/ha-mqtt-update-check.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail
source /usr/local/lib/ha-mqtt-agent/common.sh
log "starting update check"
source /etc/ha-mqtt-agent/env

HOSTNAME_SHORT="$(hostname -s || hostname)"
DEVICE_ID="$HOSTNAME_SHORT"
UPDATE_STATE_TOPIC="servers/$DEVICE_ID/agent_update"

installed_version="${AGENT_VERSION:-unknown}"
latest_version="$installed_version"

TMP_SCRIPT="$(mktemp)"
trap 'rm -f "$TMP_SCRIPT"' EXIT

if curl -fsSL --max-time 20 -o "$TMP_SCRIPT" "$AGENT_UPDATE_URL"; then
  remote_version="$(grep -m1 '^SCRIPT_VERSION=' "$TMP_SCRIPT" | sed -E 's/^SCRIPT_VERSION="?([^"[:space:]]*)"?.*/\1/')"
  if [ -n "$remote_version" ]; then
    latest_version="$remote_version"
    log "update check: installed=$installed_version latest=$latest_version"
  else
    log "WARN: could not parse SCRIPT_VERSION from downloaded script, reporting up to date"
  fi
else
  log "WARN: failed to download $AGENT_UPDATE_URL for update check, reporting up to date"
fi

payload="$(jq -nc --arg installed "$installed_version" --arg latest "$latest_version" '{installed_version:$installed, latest_version:$latest}')"
mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$UPDATE_STATE_TOPIC" -r -m "$payload" || log "ERROR publishing update check result"
EOF
  chmod +x /usr/local/bin/ha-mqtt-update-check.sh

  # discovery (uses heartbeat for availability + expire_after for ALL sensors including updates and IPs)
  cat > /usr/local/bin/ha-mqtt-discovery.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail
source /usr/local/lib/ha-mqtt-agent/common.sh
log "starting discovery script"
source /etc/ha-mqtt-agent/env

HOSTNAME_SHORT="$(hostname -s || hostname)"
DEVICE_ID="$HOSTNAME_SHORT"
DEVICE_NAME="$(printf '%s' "$HOSTNAME_SHORT" | sed 's/^./\u&/')"
HEARTBEAT_TOPIC="servers/$DEVICE_ID/heartbeat"
STATE_TOPIC="servers/$DEVICE_ID/state"

device_json="$(jq -nc --arg id "$DEVICE_ID" --arg name "$DEVICE_NAME" '{identifiers:[$id],manufacturer:"DIY",model:"Linux Server",name:$name}')"

pub_cfg_sensor() {
  local object="$1"; shift
  local body="$1"; shift
  local topic="homeassistant/sensor/$DEVICE_ID/$object/config"
  local tries=0
  until mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$topic" -r -m "$body"; do
    tries=$((tries+1))
    log "WARN: publish $object discovery failed (attempt $tries)"
    if [ $tries -ge 5 ]; then
      log "ERROR: giving up on $object discovery after $tries attempts"
      return 0
    fi
    sleep 2
  done
  log "published discovery for $object"
}

pub_cfg_binary_sensor() {
  local object="$1"; shift
  local body="$1"; shift
  local topic="homeassistant/binary_sensor/$DEVICE_ID/$object/config"
  local tries=0
  until mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$topic" -r -m "$body"; do
    tries=$((tries+1))
    log "WARN: publish $object discovery failed (attempt $tries)"
    if [ $tries -ge 5 ]; then
      log "ERROR: giving up on $object discovery after $tries attempts"
      return 0
    fi
    sleep 2
  done
  log "published discovery for $object"
}

pub_cfg_button() {
  local object="$1"; shift
  local body="$1"; shift
  local topic="homeassistant/button/$DEVICE_ID/$object/config"
  local tries=0
  until mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$topic" -r -m "$body"; do
    tries=$((tries+1))
    log "WARN: publish $object discovery failed (attempt $tries)"
    if [ $tries -ge 5 ]; then
      log "ERROR: giving up on $object discovery after $tries attempts"
      return 0
    fi
    sleep 2
  done
  log "published discovery for $object"
}

pub_cfg_update() {
  local object="$1"; shift
  local body="$1"; shift
  local topic="homeassistant/update/$DEVICE_ID/$object/config"
  local tries=0
  until mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$topic" -r -m "$body"; do
    tries=$((tries+1))
    log "WARN: publish $object discovery failed (attempt $tries)"
    if [ $tries -ge 5 ]; then
      log "ERROR: giving up on $object discovery after $tries attempts"
      return 0
    fi
    sleep 2
  done
  log "published discovery for $object"
}

# Agent Online (sensor with expire_after so it becomes Unavailable)
agent_online_cfg="$(jq -nc \
  --arg name "Agent Online" \
  --arg obj "agent_online" \
  --arg def_ent "sensor.${DEVICE_ID}_agent_online" \
  --arg uid "${DEVICE_ID}_agent_online" \
  --arg stat "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, avty_t:$stat, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, icon:"mdi:lan-connect", dev:$dev}')"

agent_version_cfg="$(jq -nc \
  --arg name "Agent Version" \
  --arg obj "agent_version" \
  --arg def_ent "sensor.${DEVICE_ID}_agent_version" \
  --arg uid "${DEVICE_ID}_agent_version" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.agent_version }}", icon:"mdi:tag", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

hostname_cfg="$(jq -nc \
  --arg name "Hostname" \
  --arg obj "hostname" \
  --arg def_ent "sensor.${DEVICE_ID}_hostname" \
  --arg uid "${DEVICE_ID}_hostname" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.host }}", icon:"mdi:server", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

os_version_cfg="$(jq -nc \
  --arg name "OS Version" \
  --arg obj "os_version" \
  --arg def_ent "sensor.${DEVICE_ID}_os_version" \
  --arg uid "${DEVICE_ID}_os_version" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.os_version }}", icon:"mdi:linux", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

gateway_cfg="$(jq -nc \
  --arg name "Default Gateway" \
  --arg obj "gateway" \
  --arg def_ent "sensor.${DEVICE_ID}_gateway" \
  --arg uid "${DEVICE_ID}_gateway" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.gateway }}", icon:"mdi:router-network", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

# Reboot button - momentary command, no state/expire_after (buttons aren't a
# value that goes stale, they're a one-shot action). dev_cla "restart" is
# HA's built-in device class for exactly this.
reboot_button_cfg="$(jq -nc \
  --arg name "Reboot Host" \
  --arg obj "reboot" \
  --arg def_ent "button.${DEVICE_ID}_reboot" \
  --arg uid "${DEVICE_ID}_reboot" \
  --arg cmd "servers/$DEVICE_ID/reboot/set" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, cmd_t:$cmd, dev_cla:"restart", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", dev:$dev}')"

# Agent update - HA's native "update" entity: shows installed vs latest
# version and gets a built-in "Install" action wired to cmd_t automatically,
# no separate sensor+button needed. State payload needs installed_version
# and latest_version for HA to parse it without a value_template; the
# in_progress/update_percentage fields we also publish (see
# ha-mqtt-agent-update.sh) drive its progress bar - no extra discovery
# config needed for those, HA picks them up from the state payload alone.
agent_update_cfg="$(jq -nc \
  --arg name "Config Update" \
  --arg obj "agent_update" \
  --arg def_ent "update.${DEVICE_ID}_agent_update" \
  --arg uid "${DEVICE_ID}_agent_update" \
  --arg stat "servers/$DEVICE_ID/agent_update" \
  --arg cmd "servers/$DEVICE_ID/agent_update/set" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, cmd_t:$cmd, payload_install:"install", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", dev:$dev, entity_category:"config"}')"

cpu_cfg="$(jq -nc \
  --arg name "CPU Usage" \
  --arg obj "cpu" \
  --arg def_ent "sensor.${DEVICE_ID}_cpu" \
  --arg uid "${DEVICE_ID}_cpu" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.cpu }}", unit_of_meas:"%", dev_cla:"power_factor", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev}')"

ram_cfg="$(jq -nc \
  --arg name "RAM Used %" \
  --arg obj "ram" \
  --arg def_ent "sensor.${DEVICE_ID}_ram" \
  --arg uid "${DEVICE_ID}_ram" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.ram }}", unit_of_meas:"%", dev_cla:"power_factor", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev}')"

swap_cfg="$(jq -nc \
  --arg name "Swap Used %" \
  --arg obj "swap" \
  --arg def_ent "sensor.${DEVICE_ID}_swap" \
  --arg uid "${DEVICE_ID}_swap" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.swap }}", unit_of_meas:"%", dev_cla:"power_factor", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

load1_cfg="$(jq -nc \
  --arg name "Load Average (1m)" \
  --arg obj "load1" \
  --arg def_ent "sensor.${DEVICE_ID}_load1" \
  --arg uid "${DEVICE_ID}_load1" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.load1 }}", stat_cla:"measurement", icon:"mdi:chart-line", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

load5_cfg="$(jq -nc \
  --arg name "Load Average (5m)" \
  --arg obj "load5" \
  --arg def_ent "sensor.${DEVICE_ID}_load5" \
  --arg uid "${DEVICE_ID}_load5" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.load5 }}", stat_cla:"measurement", icon:"mdi:chart-line", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

load15_cfg="$(jq -nc \
  --arg name "Load Average (15m)" \
  --arg obj "load15" \
  --arg def_ent "sensor.${DEVICE_ID}_load15" \
  --arg uid "${DEVICE_ID}_load15" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.load15 }}", stat_cla:"measurement", icon:"mdi:chart-line", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

failed_units_cfg="$(jq -nc \
  --arg name "Failed Units" \
  --arg obj "failed_units" \
  --arg def_ent "sensor.${DEVICE_ID}_failed_units" \
  --arg uid "${DEVICE_ID}_failed_units" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.failed_units }}", unit_of_meas:"units", icon:"mdi:alert-circle", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

reboot_required_cfg="$(jq -nc \
  --arg name "Reboot Required" \
  --arg obj "reboot_required" \
  --arg def_ent "binary_sensor.${DEVICE_ID}_reboot_required" \
  --arg uid "${DEVICE_ID}_reboot_required" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.reboot_required }}", pl_on:"true", pl_off:"false", dev_cla:"problem", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

disk_free_cfg="$(jq -nc \
  --arg name "Disk Free" \
  --arg obj "disk_free" \
  --arg def_ent "sensor.${DEVICE_ID}_disk_free" \
  --arg uid "${DEVICE_ID}_disk_free" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.disk_free_gb }}", unit_of_meas:"GB", stat_cla:"measurement", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev}')"

disk_total_cfg="$(jq -nc \
  --arg name "Disk Total" \
  --arg obj "disk_total" \
  --arg def_ent "sensor.${DEVICE_ID}_disk_total" \
  --arg uid "${DEVICE_ID}_disk_total" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.disk_total_gb }}", unit_of_meas:"GB", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev}')"

disk_free_pct_cfg="$(jq -nc \
  --arg name "Disk Free %" \
  --arg obj "disk_free_pct" \
  --arg def_ent "sensor.${DEVICE_ID}_disk_free_pct" \
  --arg uid "${DEVICE_ID}_disk_free_pct" \
  --arg stat "$STATE_TOPIC" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:"{{ value_json.disk_free_pct }}", unit_of_meas:"%", dev_cla:"power_factor", stat_cla:"measurement", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev}')"

updates_cfg="$(jq -nc \
  --arg name "Updates Pending" \
  --arg obj "updates" \
  --arg def_ent "sensor.${DEVICE_ID}_updates" \
  --arg uid "${DEVICE_ID}_updates" \
  --arg stat "servers/$DEVICE_ID/updates" \
  --arg avail "$HEARTBEAT_TOPIC" \
  --argjson dev "$device_json" \
  --argjson exp ${SENSOR_EXPIRE:-120} \
  '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, unit_of_meas:"updates", icon:"mdi:package-up", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"

pub_cfg_sensor "agent_online" "$agent_online_cfg"
pub_cfg_sensor "agent_version" "$agent_version_cfg"
pub_cfg_sensor "hostname" "$hostname_cfg"
pub_cfg_sensor "os_version" "$os_version_cfg"
pub_cfg_sensor "gateway" "$gateway_cfg"

# DNS Server 1/2 - only create a sensor for however many DNS servers are
# actually configured (0, 1, or 2). A placeholder entity for a slot that
# doesn't exist is more misleading than just not having it. Discovery
# configs are retained, so a slot that previously existed and no longer
# does gets its config actively cleared rather than left as a ghost entity.
if [ -f /run/systemd/resolve/resolv.conf ]; then
  DNS_RESOLV_CONF=/run/systemd/resolve/resolv.conf
else
  DNS_RESOLV_CONF=/etc/resolv.conf
fi
mapfile -t dns_servers < <(awk '/^nameserver/{print $2}' "$DNS_RESOLV_CONF" 2>/dev/null)

for i in 1 2; do
  idx=$((i - 1))
  obj="dns${i}"
  topic="homeassistant/sensor/$DEVICE_ID/$obj/config"
  if [ -n "${dns_servers[$idx]:-}" ]; then
    cfg="$(jq -nc \
      --arg name "DNS Server $i" \
      --arg obj "$obj" \
      --arg def_ent "sensor.${DEVICE_ID}_${obj}" \
      --arg uid "${DEVICE_ID}_${obj}" \
      --arg stat "$STATE_TOPIC" \
      --arg avail "$HEARTBEAT_TOPIC" \
      --arg val_tpl "{{ value_json.$obj }}" \
      --argjson dev "$device_json" \
      --argjson exp ${SENSOR_EXPIRE:-120} \
      '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, val_tpl:$val_tpl, icon:"mdi:dns", avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, dev:$dev, entity_category:"diagnostic"}')"
    pub_cfg_sensor "$obj" "$cfg"
  else
    mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" -t "$topic" -r -m "" || true
  fi
done
pub_cfg_button "reboot" "$reboot_button_cfg"
pub_cfg_update "agent_update" "$agent_update_cfg"
pub_cfg_sensor "cpu" "$cpu_cfg"
pub_cfg_sensor "ram" "$ram_cfg"
pub_cfg_sensor "swap" "$swap_cfg"
pub_cfg_sensor "load1" "$load1_cfg"
pub_cfg_sensor "load5" "$load5_cfg"
pub_cfg_sensor "load15" "$load15_cfg"
pub_cfg_sensor "failed_units" "$failed_units_cfg"
pub_cfg_binary_sensor "reboot_required" "$reboot_required_cfg"
pub_cfg_sensor "disk_free" "$disk_free_cfg"
pub_cfg_sensor "disk_total" "$disk_total_cfg"
pub_cfg_sensor "disk_free_pct" "$disk_free_pct_cfg"
pub_cfg_sensor "updates" "$updates_cfg"

# Per-interface IP sensors (discovered dynamically)
# We'll publish sensor for each active global IPv4 interface, name: "IP (<iface>)"
while IFS= read -r line; do
  iface_raw="$(echo "$line" | awk '{print $2}')"
  iface="${iface_raw%%@*}"  # strip @ifindex
  # Skip Docker-managed interfaces (docker0, docker_gwbridge, and the
  # per-network br-<hash> bridges Compose creates) - only physical NICs wanted.
  # Discovery configs are retained, so actively clear any that were
  # published for these before this filter existed, rather than just
  # skipping and leaving a permanently-unavailable ghost entity in HA.
  case "$iface" in
    docker*|br-*)
      safe_iface="$(echo "$iface" | tr -c 'A-Za-z0-9_' '_' | sed 's/_\+$//')"
      mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
        -t "homeassistant/sensor/$DEVICE_ID/ip_${safe_iface}/config" -r -m "" || true
      continue
      ;;
  esac
  ipaddr="$(echo "$line" | awk '{print $4}' | cut -d'/' -f1)"
  [ -z "$ipaddr" ] && continue
  safe_iface="$(echo "$iface" | tr -c 'A-Za-z0-9_' '_' | sed 's/_\+$//')"
  name="IP ($iface)"
  uid="${DEVICE_ID}_ip_${safe_iface}"
  stat="servers/$DEVICE_ID/ip/$safe_iface"
  obj="ip_${safe_iface}"
  def_ent="sensor.${DEVICE_ID}_${obj}"

  ip_cfg="$(jq -nc \
    --arg name "$name" \
    --arg obj "$obj" \
    --arg def_ent "$def_ent" \
    --arg uid "$uid" \
    --arg stat "$stat" \
    --arg avail "$HEARTBEAT_TOPIC" \
    --argjson dev "$device_json" \
    --argjson exp ${SENSOR_EXPIRE:-120} \
    '{name:$name, obj_id:$obj, def_ent_id:$def_ent, uniq_id:$uid, stat_t:$stat, avty_t:$avail, pl_avail:"online", pl_not_avail:"offline", exp_aft:$exp, icon:"mdi:ip-network", dev:$dev, entity_category:"diagnostic"}')"

  pub_cfg_sensor "ip_${safe_iface}" "$ip_cfg"
done < <(ip -o -4 addr show scope global up | awk '!seen[$2]++')
EOF
  chmod +x /usr/local/bin/ha-mqtt-discovery.sh

  # systemd units (ensure /run/ha-mqtt-agent exists automatically; and preserve it after stop)
  cat > /etc/systemd/system/ha-mqtt-metrics.service <<'EOF'
[Unit]
Description=Publish Linux metrics to MQTT (HA)
Wants=network-online.target
After=network-online.target

[Service]
Type=oneshot
ExecStart=/usr/local/bin/ha-mqtt-metrics.sh
EnvironmentFile=/etc/ha-mqtt-agent/env
RuntimeDirectory=ha-mqtt-agent
RuntimeDirectoryMode=0755
RuntimeDirectoryPreserve=yes
NoNewPrivileges=yes
ProtectSystem=strict
ProtectHome=yes
PrivateTmp=yes
ProtectKernelTunables=yes
ProtectKernelModules=yes
ProtectControlGroups=yes
ReadWritePaths=/var/log/mqtt-agent
EOF

  cat > /etc/systemd/system/ha-mqtt-metrics.timer <<EOF
[Unit]
Description=Run HA MQTT metrics every ${HEARTBEAT_INTERVAL}s

[Timer]
OnBootSec=20s
OnUnitActiveSec=${HEARTBEAT_INTERVAL}s
Unit=ha-mqtt-metrics.service

[Install]
WantedBy=timers.target
EOF

  cat > /etc/systemd/system/ha-mqtt-updates.service <<'EOF'
[Unit]
Description=Publish updates count to MQTT (HA)
Wants=network-online.target
After=network-online.target

[Service]
Type=oneshot
ExecStart=/usr/local/bin/ha-mqtt-updates.sh
EnvironmentFile=/etc/ha-mqtt-agent/env
RuntimeDirectory=ha-mqtt-agent
RuntimeDirectoryMode=0755
RuntimeDirectoryPreserve=yes
NoNewPrivileges=yes
ProtectSystem=yes
ProtectHome=yes
PrivateTmp=yes
ProtectKernelTunables=yes
ProtectKernelModules=yes
ProtectControlGroups=yes
EOF

  cat > /etc/systemd/system/ha-mqtt-updates.timer <<'EOF'
[Unit]
Description=Run updates publisher hourly

[Timer]
OnBootSec=2m
OnUnitActiveSec=1h
Unit=ha-mqtt-updates.service

[Install]
WantedBy=timers.target
EOF

  cat > /etc/systemd/system/ha-mqtt-discovery.service <<'EOF'
[Unit]
Description=Publish Home Assistant MQTT Discovery configs
Wants=network-online.target
After=network-online.target

[Service]
Type=oneshot
ExecStart=/usr/local/bin/ha-mqtt-discovery.sh
EnvironmentFile=/etc/ha-mqtt-agent/env
NoNewPrivileges=yes
ProtectSystem=strict
ProtectHome=yes
PrivateTmp=yes
ProtectKernelTunables=yes
ProtectKernelModules=yes
ProtectControlGroups=yes
ReadWritePaths=/var/log/mqtt-agent

[Install]
WantedBy=multi-user.target
EOF

  cat > /etc/systemd/system/ha-mqtt-command-listener.service <<'EOF'
[Unit]
Description=Listen for MQTT reboot/agent-update commands (HA)
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
ExecStart=/usr/local/bin/ha-mqtt-command-listener.sh
EnvironmentFile=/etc/ha-mqtt-agent/env
Restart=always
RestartSec=10
NoNewPrivileges=yes
ProtectHome=yes
PrivateTmp=yes
ProtectKernelTunables=yes
ProtectKernelModules=yes
ProtectControlGroups=yes
ReadWritePaths=/var/log/mqtt-agent

[Install]
WantedBy=multi-user.target
EOF

  cat > /etc/systemd/system/ha-mqtt-update-check.service <<'EOF'
[Unit]
Description=Check for HA MQTT Agent installer updates
Wants=network-online.target
After=network-online.target

[Service]
Type=oneshot
ExecStart=/usr/local/bin/ha-mqtt-update-check.sh
EnvironmentFile=/etc/ha-mqtt-agent/env
NoNewPrivileges=yes
ProtectSystem=strict
ProtectHome=yes
PrivateTmp=yes
ProtectKernelTunables=yes
ProtectKernelModules=yes
ProtectControlGroups=yes
ReadWritePaths=/var/log/mqtt-agent
EOF

  cat > /etc/systemd/system/ha-mqtt-update-check.timer <<'EOF'
[Unit]
Description=Run HA MQTT Agent update check at boot and hourly

[Timer]
OnBootSec=1m
OnUnitActiveSec=1h
Unit=ha-mqtt-update-check.service

[Install]
WantedBy=timers.target
EOF

  # logrotate
  cat > /etc/logrotate.d/mqtt-agent <<'EOF'
/var/log/mqtt-agent/agent.log {
  size 1M
  rotate 3
  missingok
  notifempty
  compress
  delaycompress
  copytruncate
  create 0640 root adm
}
EOF

  systemctl daemon-reload
  systemctl enable --now ha-mqtt-discovery.service
  systemctl enable --now ha-mqtt-command-listener.service
  systemctl enable --now ha-mqtt-metrics.timer
  systemctl enable --now ha-mqtt-updates.timer
  systemctl enable --now ha-mqtt-update-check.timer

  # Seed sensors immediately
  /usr/local/bin/ha-mqtt-metrics.sh || true
  /usr/local/bin/ha-mqtt-updates.sh || true

  # We ARE $SCRIPT_VERSION right now (that's literally what's executing),
  # so publish Config Update as "up to date" directly instead of
  # re-downloading UPDATE_URL again just to re-derive the same answer -
  # this is what ha-mqtt-update-check.sh would conclude anyway, minus the
  # redundant network round trip on every single upgrade. The hourly timer
  # still does a real check against UPDATE_URL independently, so genuine
  # drift (a newer version published later) still gets caught normally.
  #
  # This MUST run before the command-listener restart below: when -upgrade
  # is reached via the MQTT update button, this whole function is executing
  # as a descendant process of ha-mqtt-command-listener.service itself, and
  # that service has no KillMode override (default control-group) - so
  # restarting it first would SIGTERM this entire process tree mid-upgrade,
  # before ever publishing the "up to date" state. Device would then sit on
  # "update available" until the next hourly ha-mqtt-update-check.timer run.
  mosquitto_pub -h "$MQTT_HOST" -p "$MQTT_PORT" -u "$MQTT_USER" -P "$MQTT_PASS" \
    -t "servers/$DEVICE_ID/agent_update" -r \
    -m "$(jq -nc --arg v "$SCRIPT_VERSION" '{installed_version:$v, latest_version:$v, in_progress:false, update_percentage:null}')" || true

  # enable --now on an already-running Type=simple service does NOT restart
  # it, so on -upgrade the listener would otherwise keep executing whatever
  # code was in memory from before the upgrade rewrote its script on disk.
  # Must be last: an MQTT-triggered update runs this whole function as a
  # child of this very service (see comment above), so restarting it any
  # earlier kills the upgrade in progress.
  systemctl restart ha-mqtt-command-listener.service

  local action_label="Installation"
  [[ "$ACTION" == *upgrade* ]] && action_label="Upgrade"
  echo "$action_label complete.
Version: $SCRIPT_VERSION
Device: $DEVICE_NAME
Broker: $MQTT_HOST:$MQTT_PORT
Metrics every ${HEARTBEAT_INTERVAL}s; sensors expire after ${SENSOR_EXPIRE}s if no data.
RuntimeDirectory preserved across job exits to avoid /run deletions mid-run.
Updates handle apt locks and prevent overlapping runs.
Logs: $LOG_FILE (rotated at ~1MiB)"
}

uninstall_all() {
  set +e
  systemctl disable --now ha-mqtt-metrics.timer ha-mqtt-updates.timer ha-mqtt-update-check.timer ha-mqtt-discovery.service ha-mqtt-command-listener.service 2>/dev/null
  systemctl stop ha-mqtt-metrics.service ha-mqtt-updates.service ha-mqtt-update-check.service 2>/dev/null
  systemctl daemon-reload

  rm -f /etc/systemd/system/ha-mqtt-metrics.service
  rm -f /etc/systemd/system/ha-mqtt-metrics.timer
  rm -f /etc/systemd/system/ha-mqtt-updates.service
  rm -f /etc/systemd/system/ha-mqtt-updates.timer
  rm -f /etc/systemd/system/ha-mqtt-update-check.service
  rm -f /etc/systemd/system/ha-mqtt-update-check.timer
  rm -f /etc/systemd/system/ha-mqtt-discovery.service
  rm -f /etc/systemd/system/ha-mqtt-command-listener.service

  rm -f /usr/local/bin/ha-mqtt-metrics.sh
  rm -f /usr/local/bin/ha-mqtt-updates.sh
  rm -f /usr/local/bin/ha-mqtt-discovery.sh
  rm -f /usr/local/bin/ha-mqtt-command-listener.sh
  rm -f /usr/local/bin/ha-mqtt-update-check.sh
  rm -f /usr/local/bin/ha-mqtt-agent-update.sh

  rm -rf /usr/local/lib/ha-mqtt-agent
  rm -rf /etc/ha-mqtt-agent
  rm -f /etc/logrotate.d/mqtt-agent
  rm -rf /var/log/mqtt-agent
  rm -rf /run/ha-mqtt-agent

  systemctl daemon-reload
  echo "Uninstall complete."
}

case "$ACTION" in
  -install|--install|install)
    install_all
    ;;
  -upgrade|--upgrade|upgrade)
    # install_all() unconditionally rewrites every file/unit it manages, so
    # this is the exact same full re-deploy as -install - the separate name
    # just makes intent clear when running this against an existing device
    # on an older version, rather than a fresh host.
    install_all
    ;;
  -uninstall|--uninstall|uninstall)
    uninstall_all
    ;;
  *)
    echo "Usage: $0 [-install|--install|install] | [-upgrade|--upgrade|upgrade] | [-uninstall|--uninstall|uninstall]"
    exit 2
    ;;
esac

Installing the MQTT Agent on Ubuntu

The script doesn’t contain any passwords. You give it your broker details when you install, either as a .env file in the same folder as the script:

# .env (keep this file private)
MQTT_HOST="homeassistant.local"
MQTT_PORT="1883"
MQTT_USER="MQTT"
MQTT_PASS="your-mqtt-password"

then run:

sudo bash ha-mqtt-agent.sh -install

or as environment variables on the command line:

sudo MQTT_HOST="homeassistant.local" MQTT_USER="MQTT" MQTT_PASS="your-mqtt-password" bash ha-mqtt-agent.sh -install

The installer pulls in what it needs (jq, mosquitto-clients, apt-show-versions and a few others), sets everything up, and prints the installed version when it finishes. The device name comes from the server’s hostname, so the same script and .env work on every server.

When the installer completes, your server should appear in:

Home Assistant → Settings → Devices & Services → MQTT

If it doesn’t, confirm that port 1883 is open between your server and Home Assistant, and that the MQTT username and password are correct.

Updating the Agent

The easy way is from Home Assistant. When a new version is published, the server’s Config Update entity shows an update is available. Press Install and the agent downloads the new version, checks it, and upgrades itself, with a progress bar while it works. It keeps the MQTT settings it was installed with.

You can also upgrade from the command line with a newer copy of the script:

sudo bash ha-mqtt-agent.sh -upgrade

Rebooting from Home Assistant

The Reboot Host button reboots the server straight away. That’s handy after updates (pair it with the Reboot Required sensor), but treat it with care:

• Anyone who can publish to your MQTT broker can reboot the server or trigger an update, so give the broker its own strong password and don’t share that account.
• Turn on the confirmation option on the button and update cards in your dashboard, so a stray tap doesn’t reboot anything.

Troubleshooting

Check the services are running:

systemctl status ha-mqtt-metrics.timer ha-mqtt-command-listener.service

Everything the agent does is logged here:

sudo tail -f /var/log/mqtt-agent/agent.log

An Error: Problem setting username and/or password in the log almost always means the .env file was edited on Windows and has Windows line endings. Fix it with sed -i 's/\r$//' .env, then run -install again.

To remove the agent and everything it installed:

sudo bash ha-mqtt-agent.sh -uninstall

servers/<hostname>/heartbeat         "online", the availability topic for every sensor
servers/<hostname>/state             JSON: cpu, ram, swap, load, disk, gateway, dns, os_version, ...
servers/<hostname>/updates           pending update count
servers/<hostname>/ip/<iface>        IP address per interface
servers/<hostname>/reboot/set        any message here reboots the server
servers/<hostname>/agent_update      installed and latest agent version
servers/<hostname>/agent_update/set  any message here runs the self-update
homeassistant/<type>/<hostname>/...  retained discovery configs

Example Data

Future Plans

• Additional metrics: uptime, network throughput, temperatures
• TLS support for encrypted MQTT on port 8883

Final Thoughts

The Ubuntu MQTT agent is a quick win for anyone who wants real-time server telemetry inside Home Assistant. It’s minimal, keeps credentials out of the script, updates itself, and it’s easy to automate against: perfect for homelabs and small server fleets.

Tags: Home Assistant, MQTT, Ubuntu, Linux, Monitoring, Mosquitto, Automation
